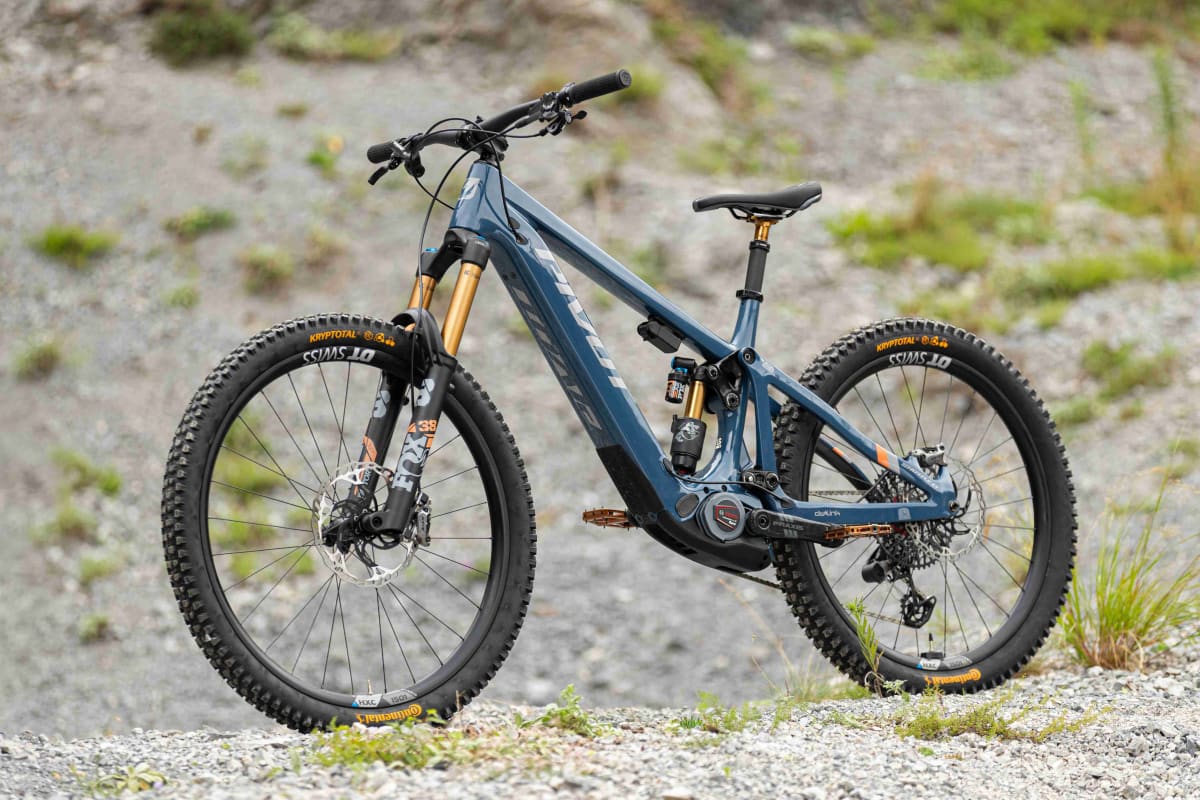

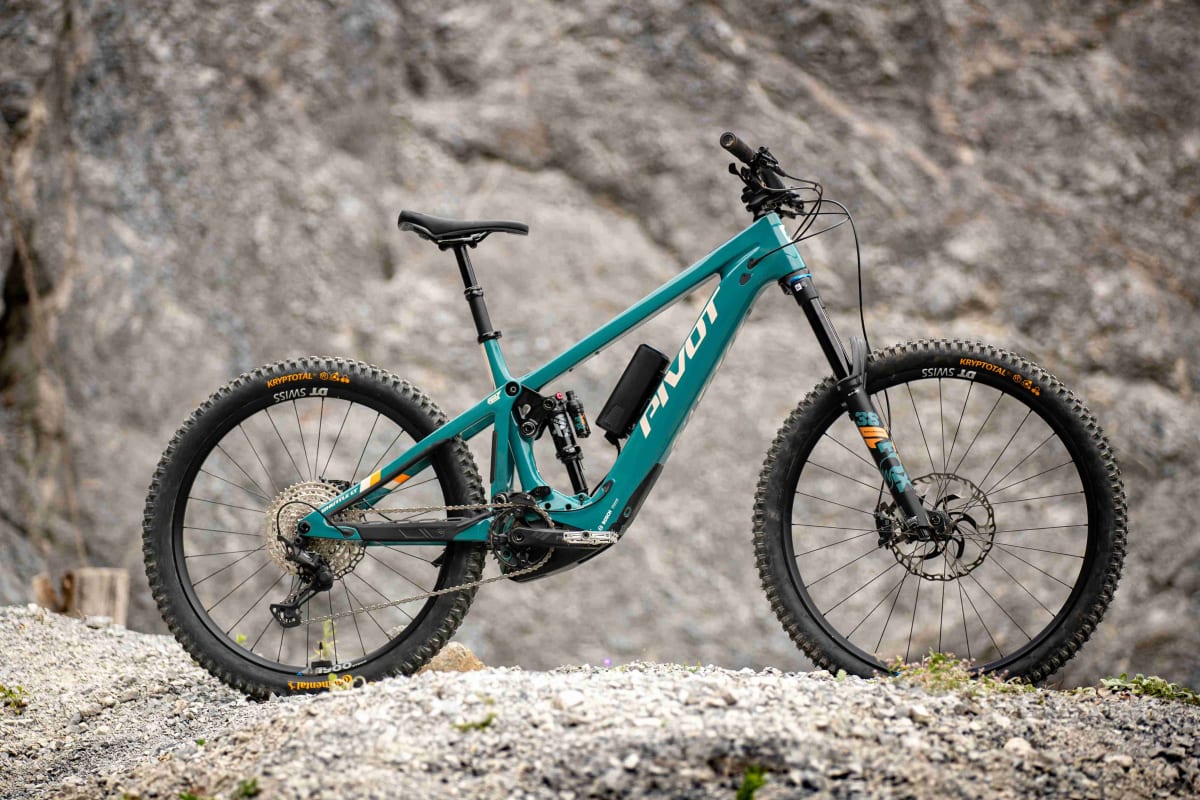

Shuttle LT
162 R / 170 F | MX
This is Enduro, Electrified
Wickedly Capable
The Shuttle LT doesn’t just tame terrain, it thrives on it. A low-slung center of gravity locks you into the trail, keeping the bike planted when speed and chaos collide, while staying playful enough to go airborne at a moment’s notice. At its heart, 162 mm of dw-link rear travel paired with 170 mm up front creates a suspension platform that channels raw power into efficiency on the climbs and total control on the descents. Complementing that foundation, the Fox Podium inverted fork (Pro & Team Builds) rides with the authority of a downhill setup in a single-crown package, giving you the stiffness, precision and confidence to keep charging no matter how wild it gets.

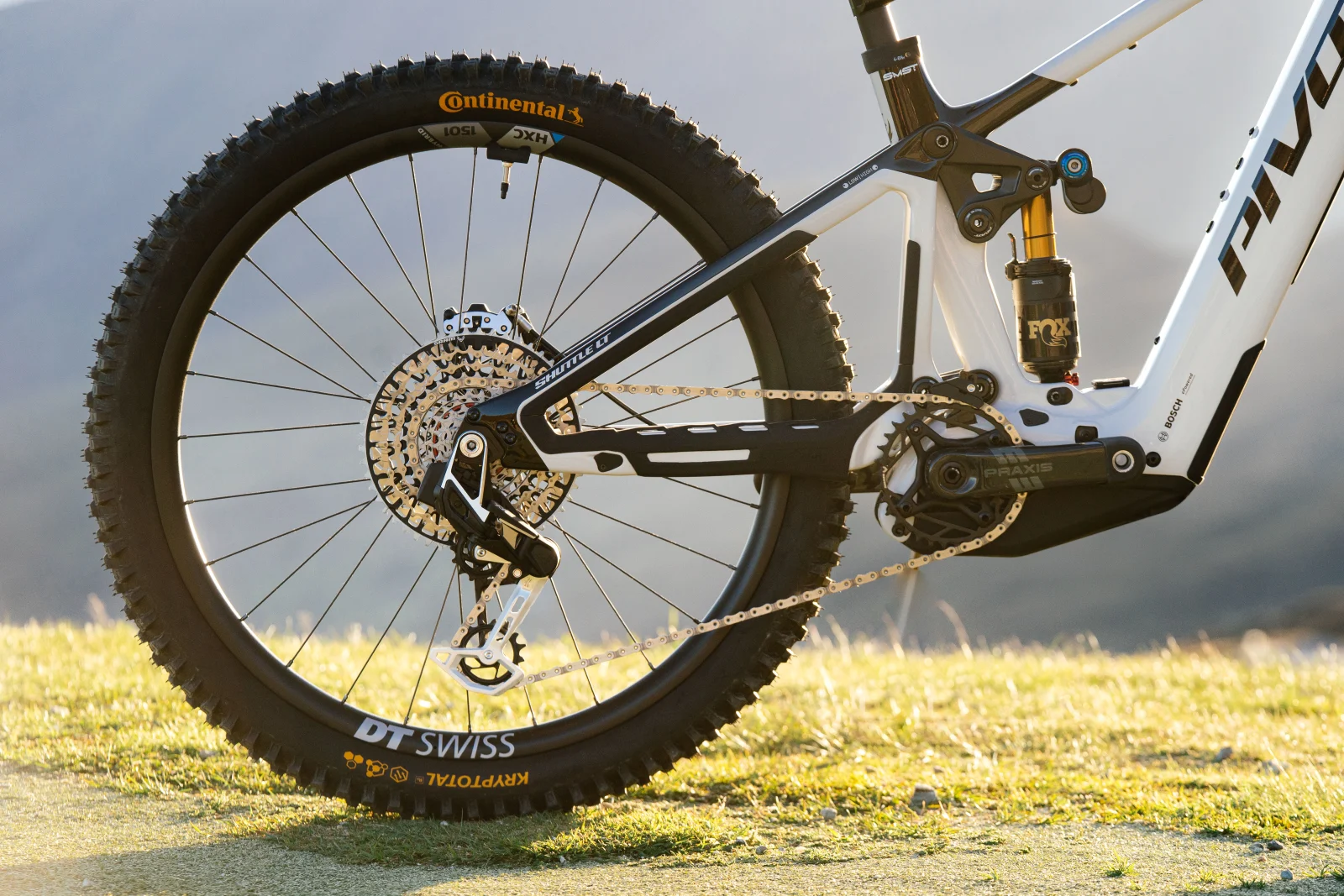

Dial It In
Customization runs deep — with the new Shuttle LT, Pivot introduces the world’s first independently adjustable seat tube angle. Our patent-pending Slacky McSteepTube™ design lets you fine-tune your bike for the climbs and descents you live for, with a steep 78° for big alpine ascents or 76.5° for punchy up-and-down terrain like Moab. Pivot’s patented Swinger dropout system provides 8mm of chainstay adjustment for snappy handling or high-speed stability. A geo flip-chip lets you dail your geomety and wheel setup, while a suspension flip-chip adjusts the shock curve from lively and progressive to deep and composed. It’s personalization that goes beyond numbers, making the Shuttle LT an extension of you and your terrain.
Watt-Fed Fury
At the heart of the Shuttle LT Pro and Team builds is Bosch’s race-tuned CX-R drive unit, a lighter, more aggressive motor with a titanium spindle and ceramic bearings, built for pure speed and sharpened response. It pushes out 100Nm of torque and 750 watts of peak power, ready to fly up the most brutal climbs with eye-watering speed and exceptional traction. All backed by an easily removeable 800Wh battery, delivering the range to match the motor’s ferocity. From all-day epics to back-to-back race stages, a removable battery and range extender capability keeps the Shuttle LT going long after others have tapped out.
Shuttle LT
Everything You Need To Know
“With the Shuttle LT, cult brand Pivot have created a long-travel e-Enduro that’s hard to beat when it comes to adjustability and trail performance. Built up as a mullet bike, the Shuttle LT looks fast even when stationary, leaving no doubt about its purpose: built for racers and those who want to ride like one.”

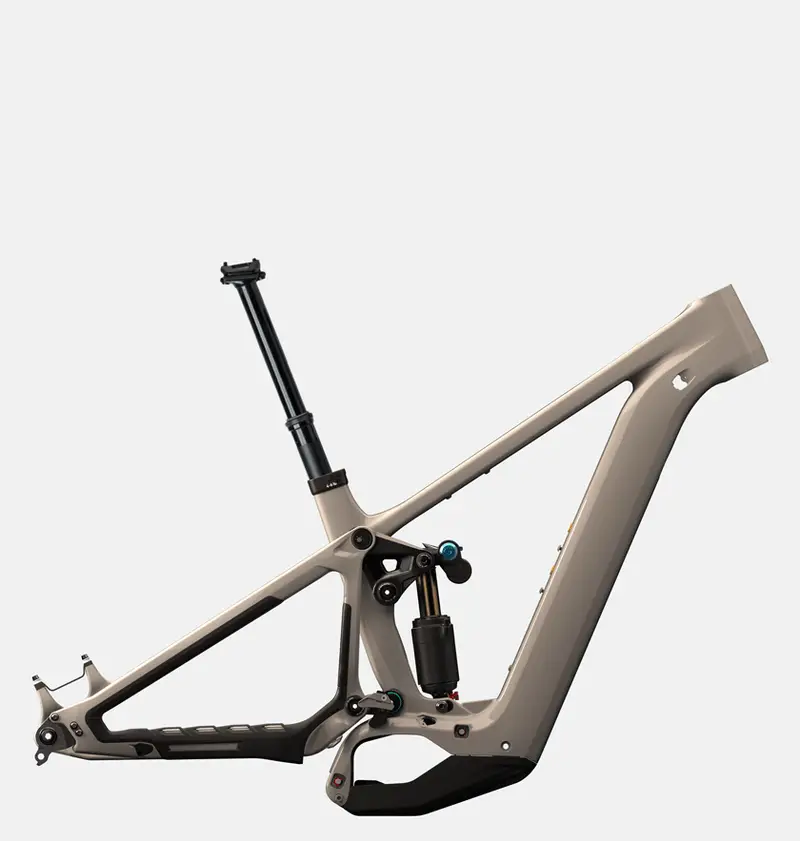

Slacky McSteepTube™
Pivot's patent-pending system allows independent adjustment of the seat tube angle, a world's first. Fine-tune between: 78° for dominating long, sustained climbs and 76.5° for mixed terrain and constant ups/down. Lets riders tailor the Shuttle LT’s climbing position to their terrain and style.

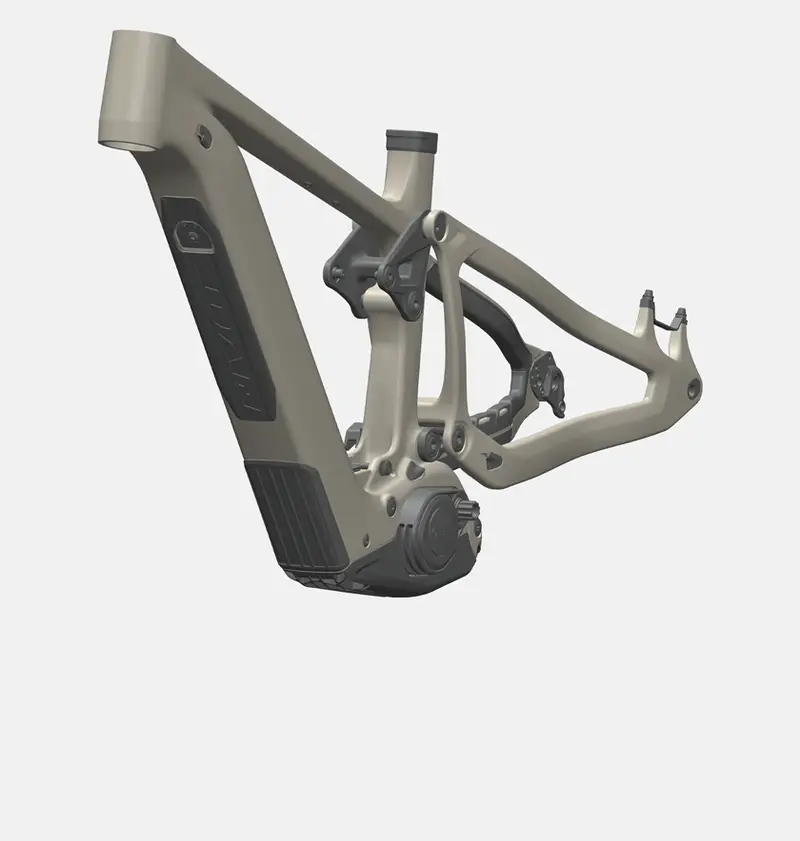

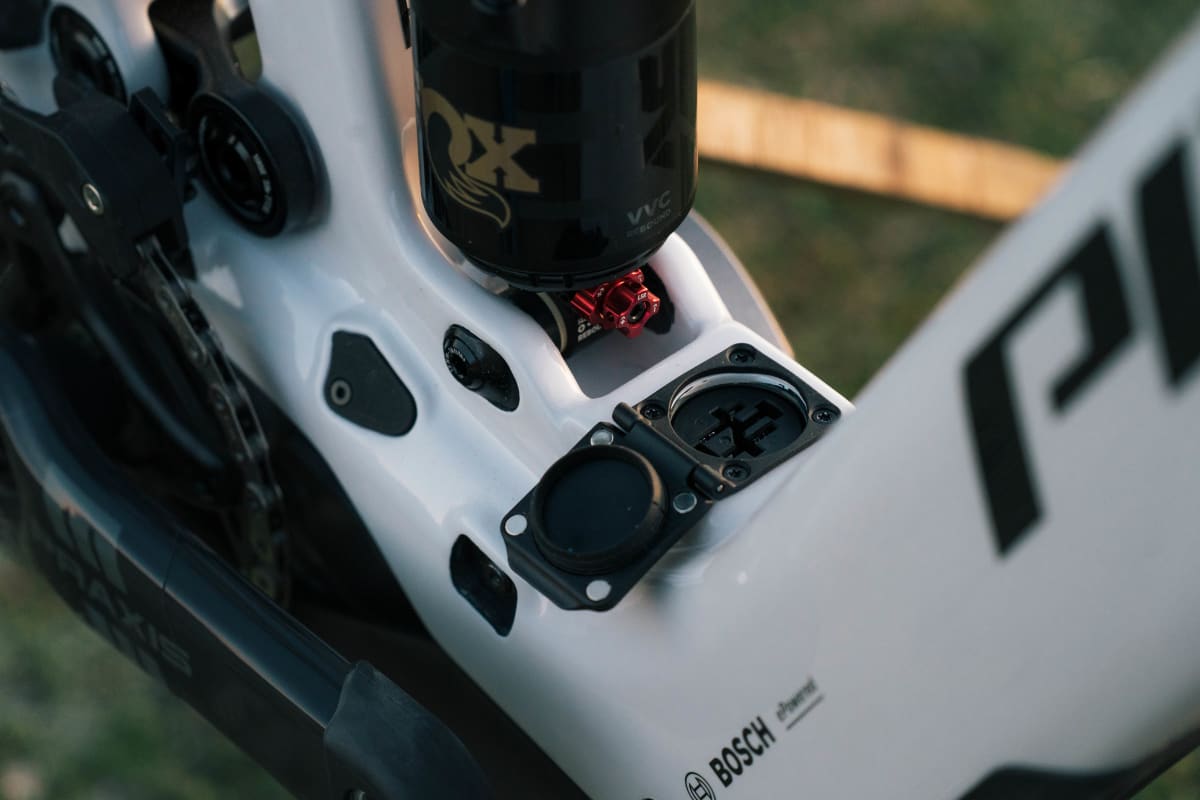

Removable Battery
The Shuttle LT’s 800Wh battery isn’t just big, it’s fully removable. Riders can swap between batteries in seconds, charge off the bike and travel with ease, all without compromising frame stiffness or handling. It’s the freedom to go further, faster, with less downtime. The Shuttle LT is also compatible with Bosch’s 600Wh battery for riders seeking a lighter package, for shorter rides.

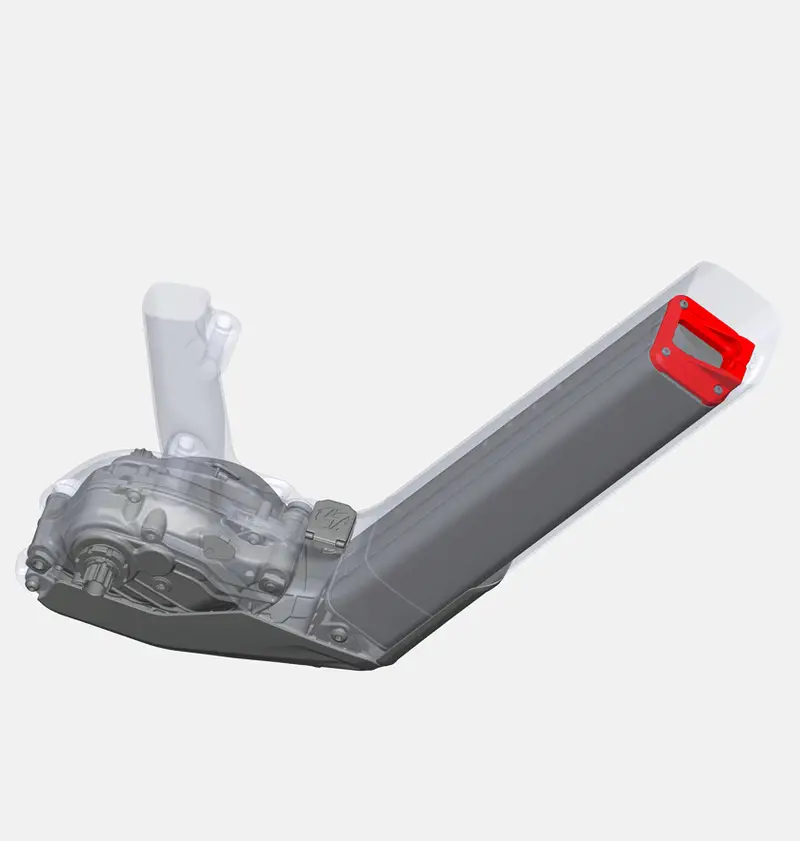

Floating Battery Technology
Rather than fixing the battery rigidly to the frame, Pivot uses two independent nylon-composite mounts that allow it to subtly rotate as the carbon frame flexes under load. This floating interface lets the frame move naturally through impacts and cornering, preserving compliance, durability and the ride feel Pivot is known for.

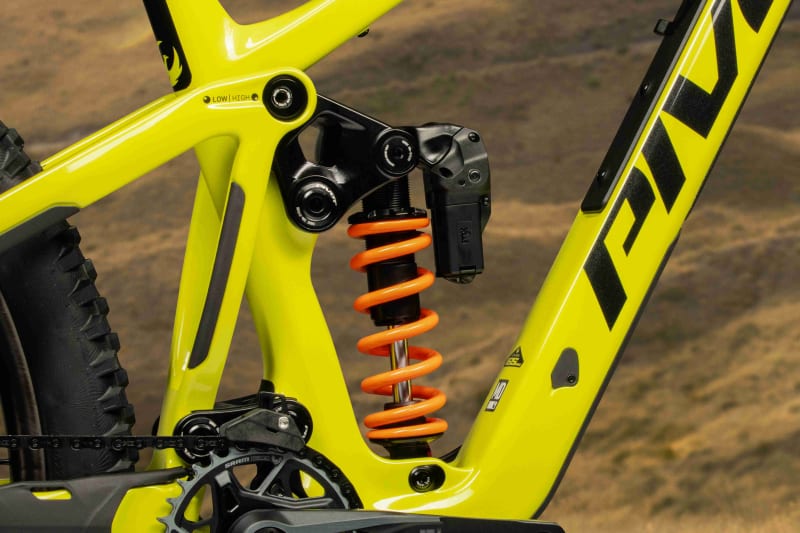

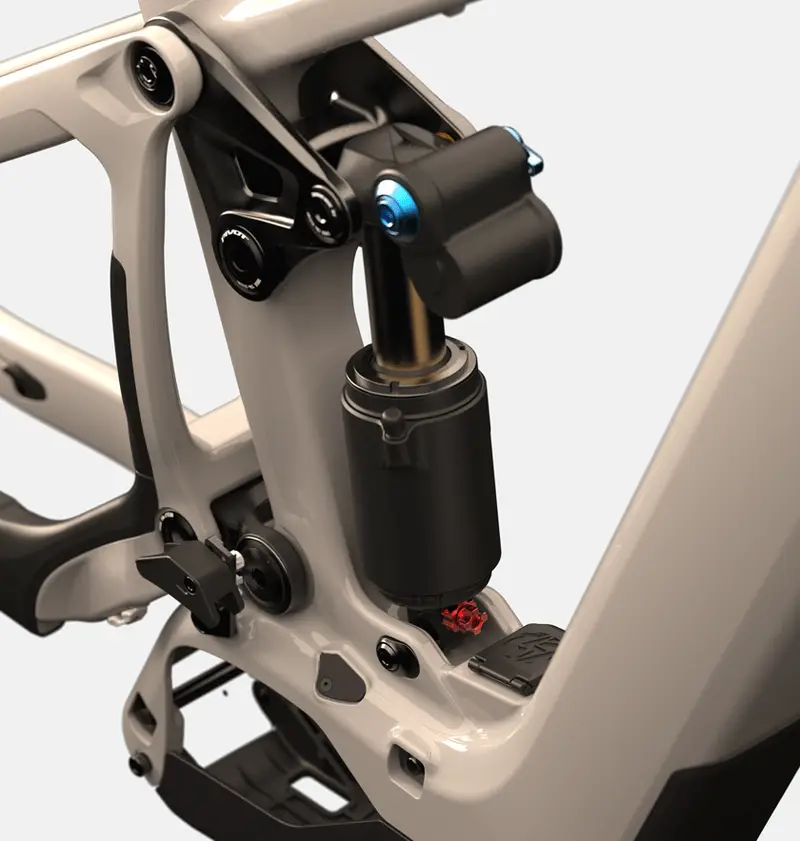

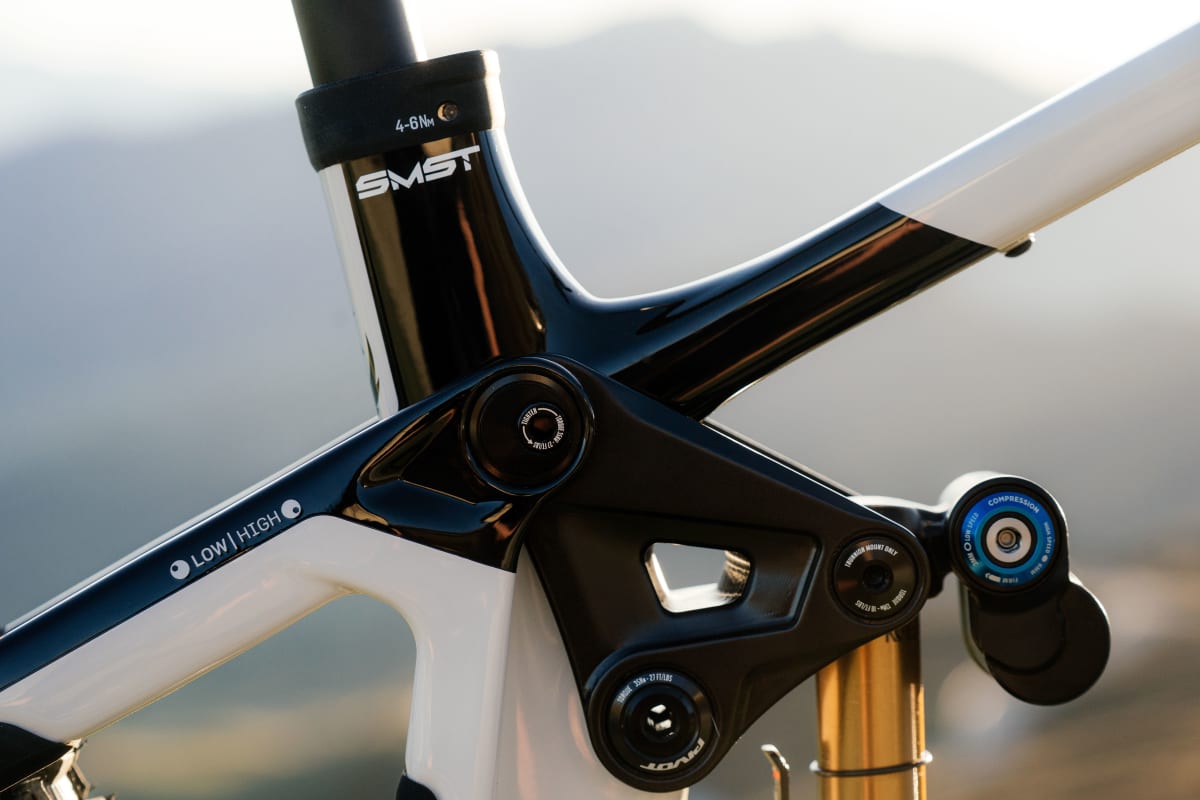

Suspension Progressivity Flip Chip
Adjustable progression via lower shock mount flip chip. Allows riders the ability to change the progressivity of the suspension curve. 0 - 100% of travel: 36.0% in progressive, 32.7% in linear. 30% (sag) to 90% of travel: 19.1% in progressive, 16.8% in linear

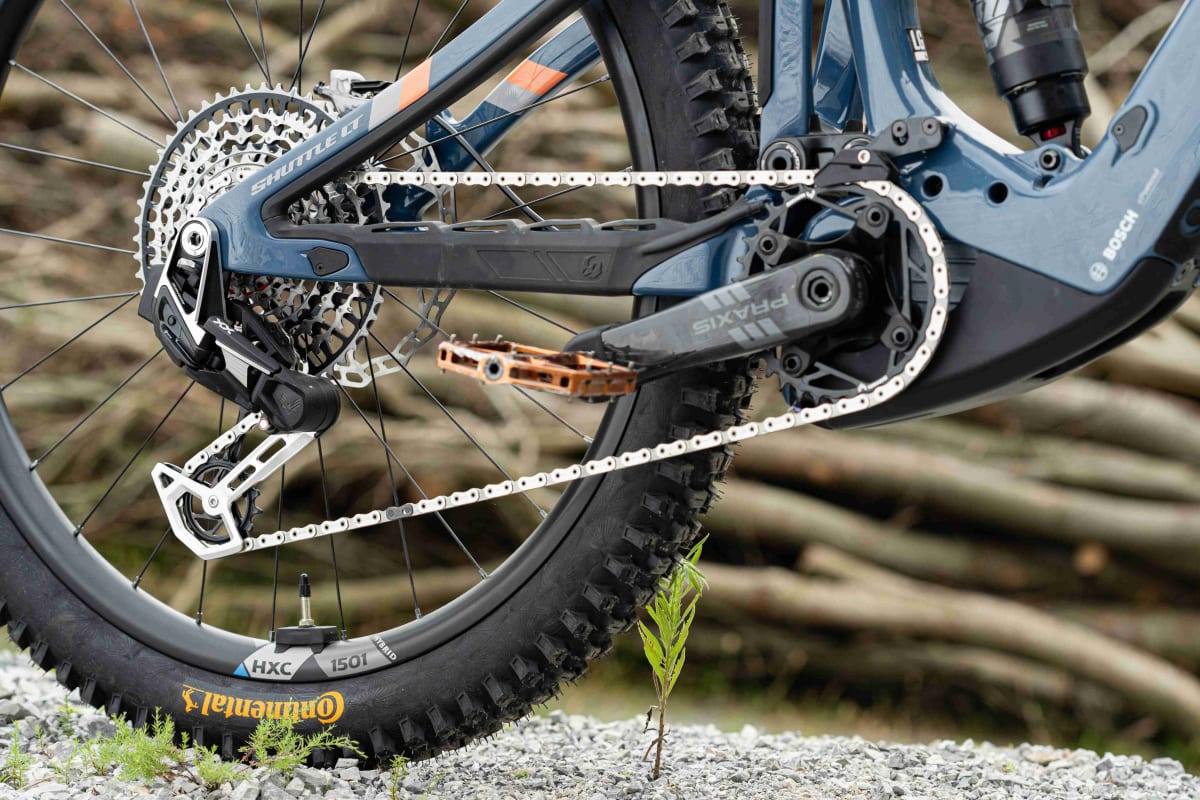

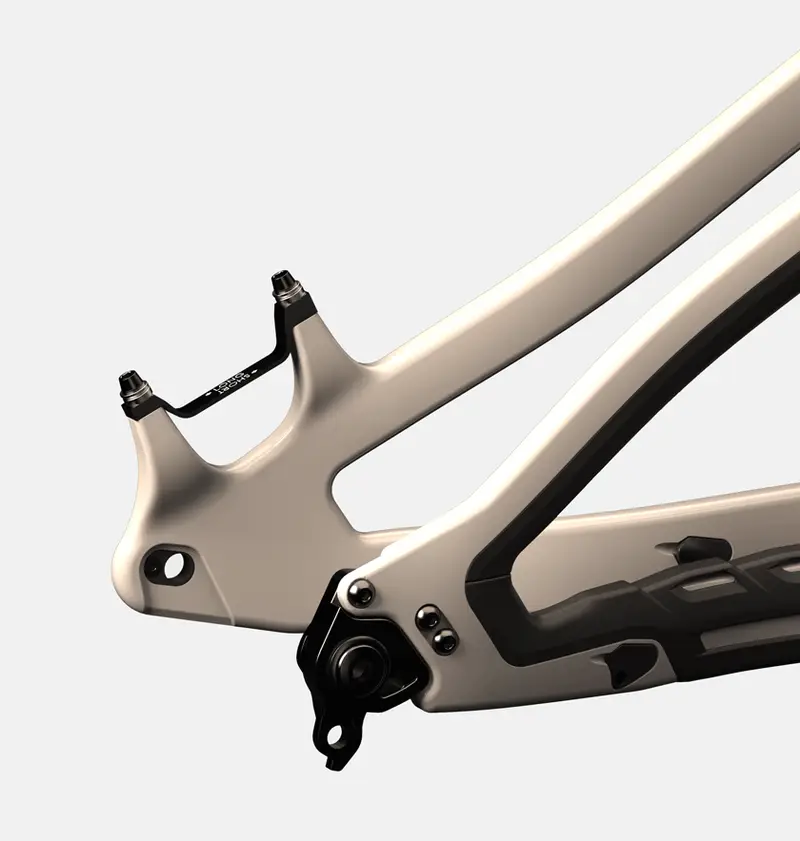

Adjustable Chainstay Length
Using our Swinger Dropout patent, we developed a chainstay length adjustment that is fully compatible with UDH and SRAM Transmission in either setting. Riders can choose between the short or long position, providing 8mm of rear-center adjustment while also tuning rear travel, with 162mm in the short setting and 165mm in the long.

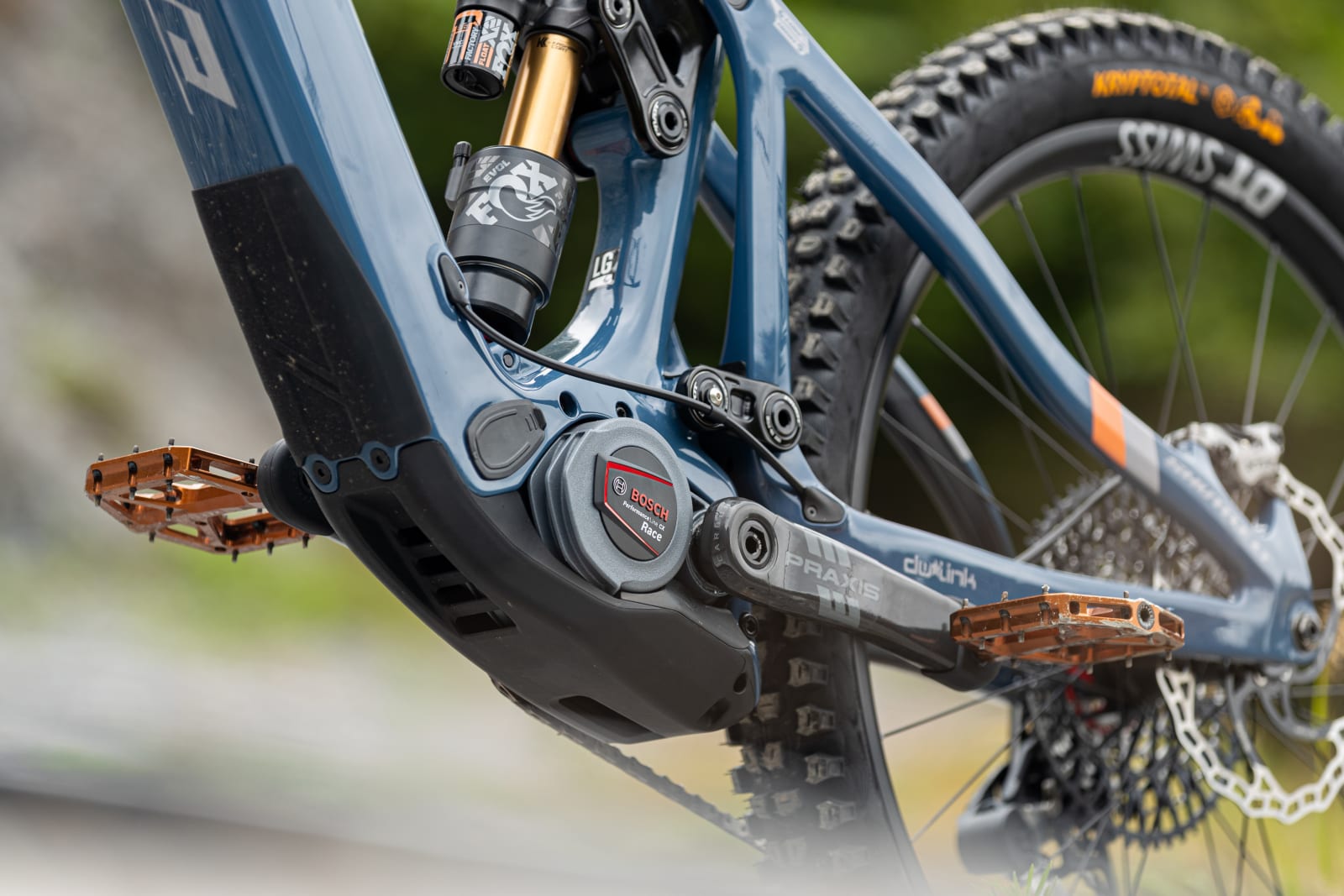

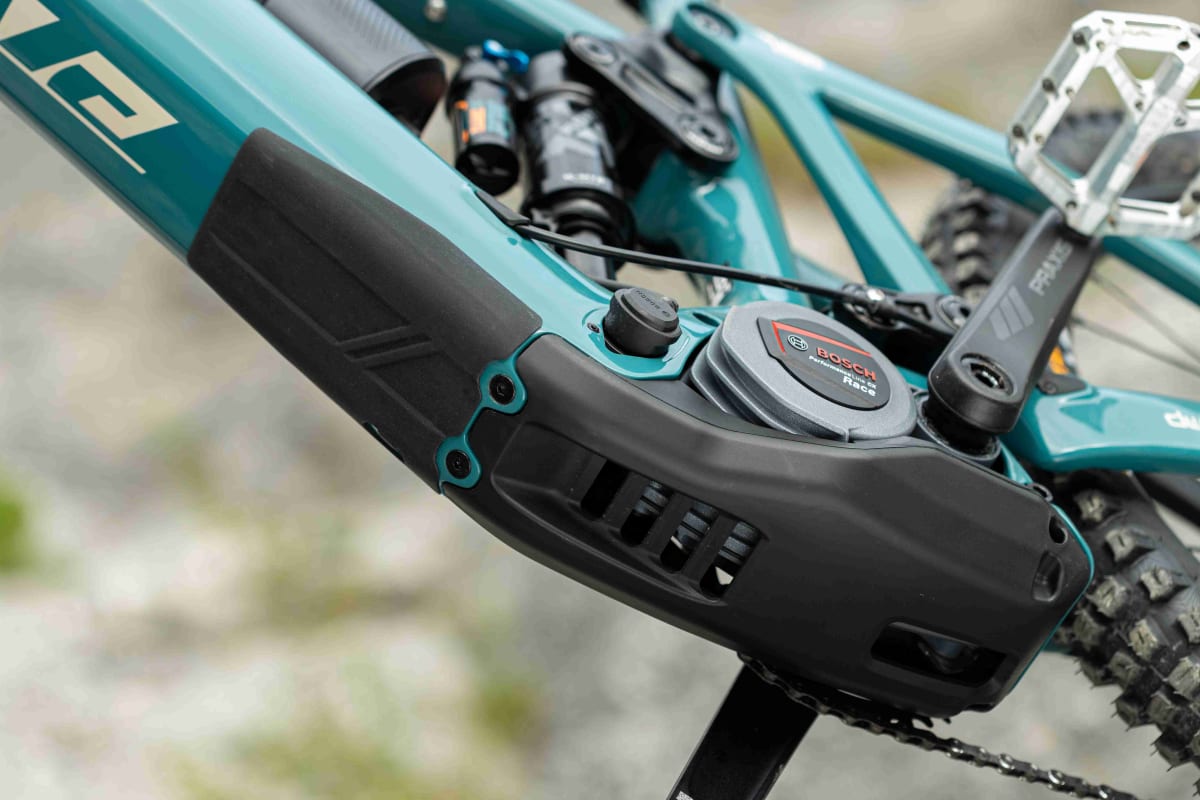

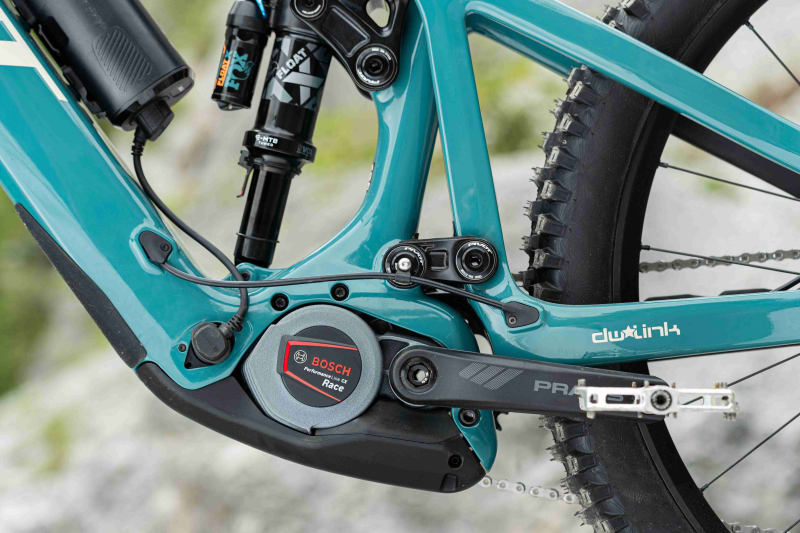

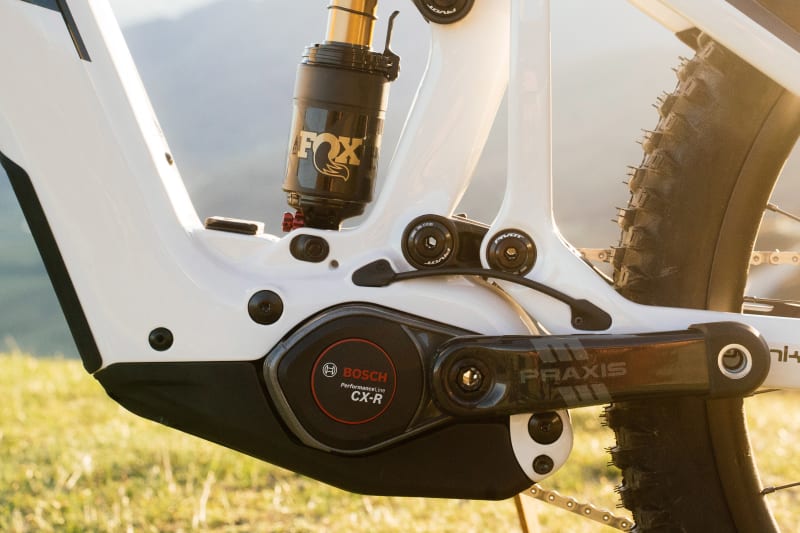

The Latest Bosch Performance Drive System
Powered by the latest Bosch Performance drive system, the Shuttle LT features Bosch Performance CX and CX-R motors (Pro & Team) for class-leading performance. An 800Wh battery delivers confident range, with the option to add the Bosch PowerMore 250 range extender. The compact, bottle-shaped PowerMore adds 250Wh, weighs just 3.3 lbs (1.6 kg), and mounts easily to extend your ride without compromise.
Learn more about Bosch PowerMore 250 range extender

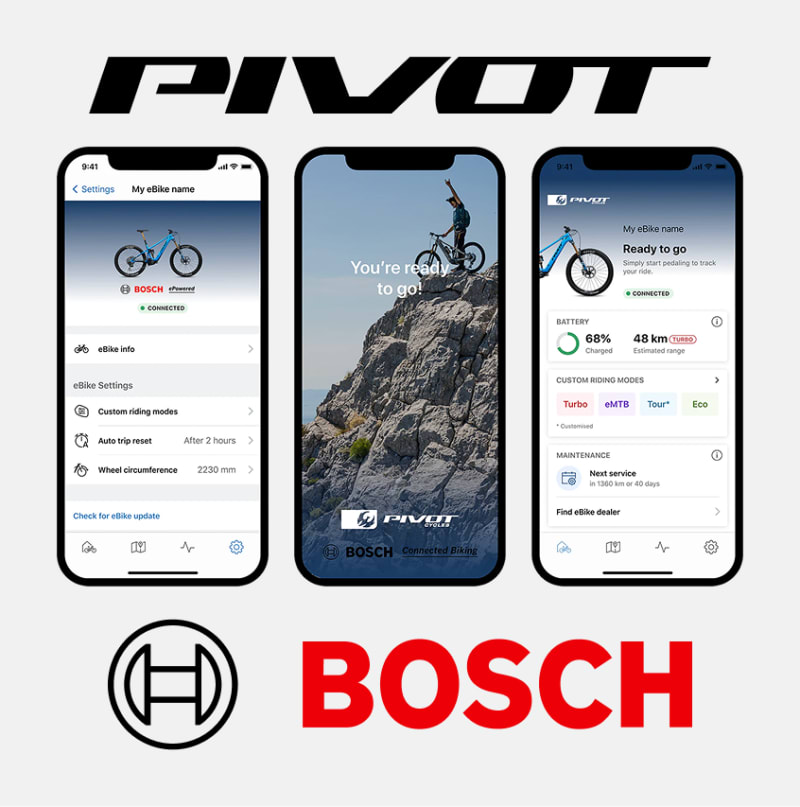

Pivot X Bosch Flow App
The Bosch x Pivot Cycles Flow app seamlessly connects riders to Bosch-powered e-bikes, offering access to all assist modes, including Turbo, eMTB-shortcrank, Sport, and the new eMTB+ mode. It also provides maintenance recommendations, a Pivot/Bosch dealer locator and real-time battery status with estimated range in one intuitive platform.
Download from the App Store

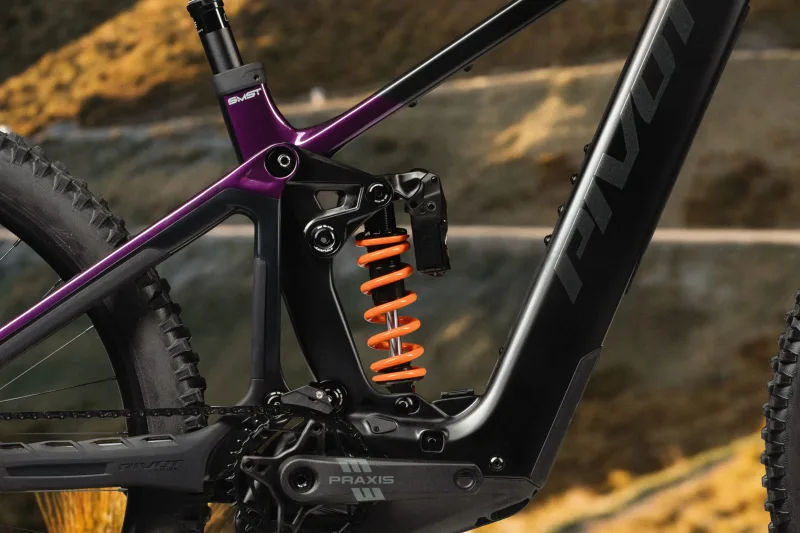

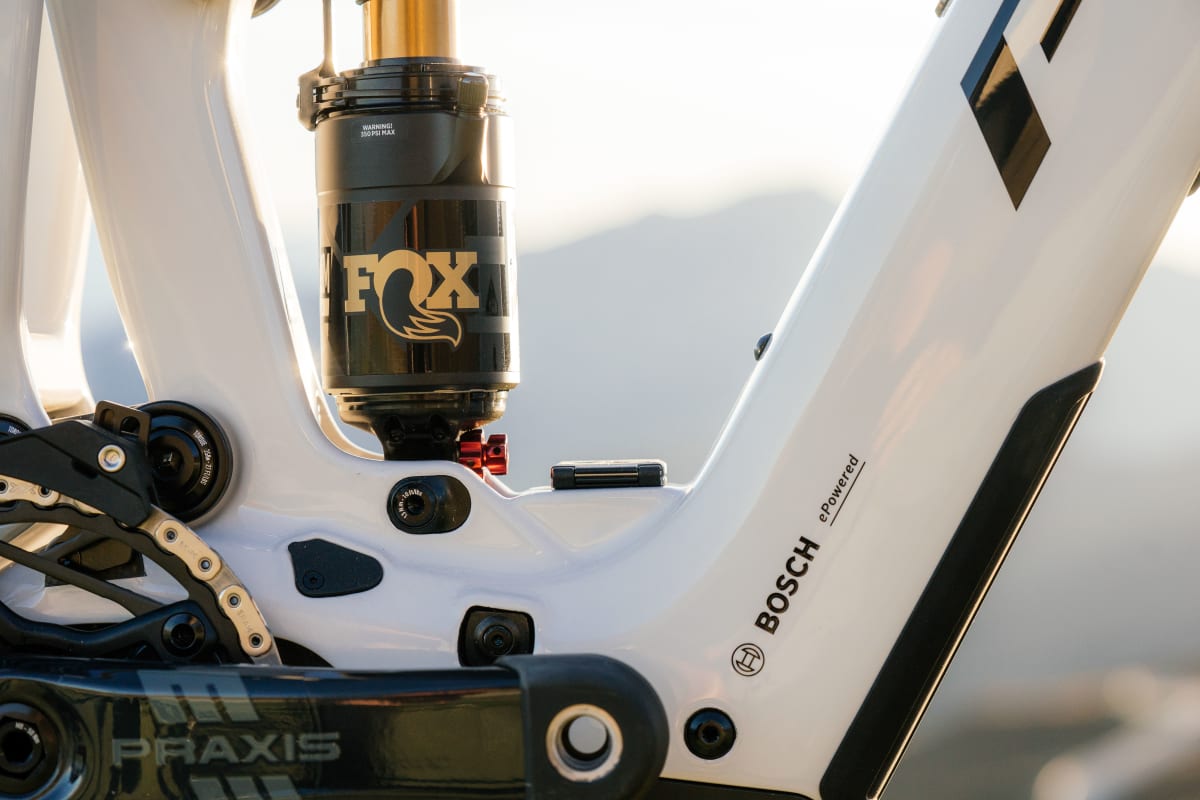

FOX Live Valve Neo
Live Valve Neo adapts to the trail in real time, delivering optimized suspension settings for every moment. On the Shuttle LT, Fox Live Valve Neo enhances control on descents and maximizes efficiency on climbs. Available exclusively on Team builds with the Fox Live Valve Neo air shock, it delivers a calm, planted feel that lets you ride faster, smoother and with total confidence through rough terrain.
